Applications

Engineers have trusted Chroma’s electronic instruments, unmatched service, and support for many applications. For years, Chroma has been a go-to supplier for military/aerospace, industrial, and research applications with great success, and the number of applications just keeps growing.

Chroma consists of a large percentage of R&D engineers, and puts a great deal of investment into research and development each year to ensure its leading technology. Core technologies in power electronics and optics have been the cornerstones to help Chroma drive forward in various new frontiers and to provide innovative test solutions with precision, reliability, and uniqueness.

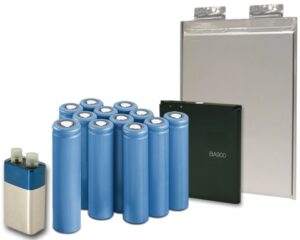

Battery Testing

Chroma satisfies battery testing requirements with your need for accuracy in measuring voltage, current, temperature and power – statically and dynamically.

Learn more

EV Testing – Mission Motors’ Battery Packs

Chroma’s 63208 Electronic Load plays two main roles for Mission. First and foremost, it acts as a research tool. Mission demands high power and energy from their packs, while keeping the form factor small and lightweight and achieving automotive lifetimes.

Learn more

EV/PHEV Chargers

The power conversion section of the EV/PHEV is composed of several power electronic units, which include the EVSE (EV Supply Equipment), on-board charger, DC/DC converter, motor driver, etc. The Chroma ATS (Automatic Test System) addresses the specialized requirements involved in testing the power electronics during not only the development phase, but also the production phase.

Learn more

Electrical Safety Systems

The major test items of the Electrical Safety devices include AC/DC/IR Hipot tests for electronic components, and Ground Bond and Leakage Current tests for appliances. In addition to confirming whether the products comply with the safety specifications such as UL, CE, TUV and etc., the main purpose of the test is to ensure human safety and product reliability.

Learn more

Medical Safety Systems

The Chroma Sentinel series of medical safety testers provide more than enough current for functional run testing as well as earth, enclosure, patient and line leakage current tests meeting IEC60601-1 compliance requirements.

Learn more

LED Power Driver Test Guide

Chroma has defined this test specification to further advance the quality and technical development of the LED driver based on its 26 years of specialized knowledge in the power testing field and the professional testing experiences of various manufacturers.

Learn more

LED Driver Testing

LED’s are a current driven DC device and require a converter so they can be powered from an AC voltage. These Power supplies for LED lighting are most commonly referred to as LED Drivers. LED Drivers have different operating characteristics from the typical AC to DC, and DC to DC Power Supplies used for most electronic equipment. They are often a constant Current output rather than a Constant Voltage Output. Chroma has created the industries first Electronic Load with an LED operating mode for simulating LED loading: the Chroma 63110A load module, for our 6310A series.

Learn more

LED Test Solutions

The industry’s first LED simulator for LED driver testing. The LED’s forward voltage and operating resistance can be set to further adjust the loading and ripple current to better simulate LED characteristics.

Learn more

Passive Component Testing

Besides testing capacitors, inductors and resistors individually, the passive components test devices are also able to measure assorted electronic components composed of them. Individual components include wound components and communication and power filters; Composites include switches, connectors, lead wires, conductive, dielectric material, magnetic material and semiconductor components.

Learn more

Solar PV Testing

Because environmental conditions can change quickly, fast and synchronized sampling of V-I characteristics is essential for meaningful data collection. Described in this article are methods of how this can be achieved.

Learn more

Solar - Photovoltaic Array Analysis

There is no better method of predicting photovoltaic (PV) array performance than exposing it to real-life conditions in the field. Although laboratory tests can accurately determine PV cell characteristics, real-time monitoring of a photovoltaic array in the field can boost confidence in product reliability and overall performance.

Learn more

Solar Array Simulation

The Model 62150H-600S/1000S DC Power Supply has a built in SAS mode that allows for easy programming of the Voc, Isc, Vmp, and Imp parameters to simulate different solar cell materials I-V characteristic outputs with fast response time.

Learn more

Power Electronics Testing

Chroma’s test instruments and systems are used to help achieve power efficiency requirements for global markets including ENERGY STAR®, Green Mark, Eco-label, and more.

Learn more
