Exploring Electrical Equipment Test System

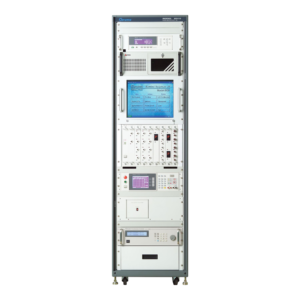

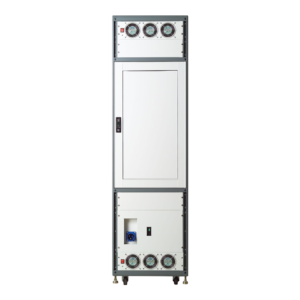

Electrical Equipment Test System-Chroma 8900

Electrical Equipment Test System

Chroma C8900

  • Open architecture software
  • Expandable hardware
  • Editable test library
The 8900 electrical equipment ATS can complete measurement and test procedures simultaneously and automatically. This automated functionality decreases the risk of errors due to improperly written tests. Chroma 8900 solves the Electrical Safety Test and special FUNCTION test solution. Different testers can be combined in the system to suit specific needs. The software is all open architecture structure which can offer the corresponding program and the most flexible test item in accordance with special test procedure to the customer for special products.
Key Features
  • Open architecture software
  • Expandable hardware
  • Editable test library
  • Editable test programs
  • Editable and Test Item
  • Editable reports
  • Statistic report
  • User authority control
  • Activity log
  • Support Barcode reader
Open Architecture Software

The all open architecture software of 8900 systems includes a powerful report editor and generator, statistical analysis and management functions. Management of various types of different test reports and operation enable the system to control quality and reduce risk. These statistical analysis and report functions are indispensable for quality control and product line testing in a modern electrical manufacturing environment.


  • Support electrical safety test and function test scanning :
    • AC/DC WV Test
    • IR Test
    • GB Test
    • LC Test (all types)
    • Function test
  • Expandable Measurement function
    • LCR Meter
    • AC/DC Source
    • DC Load
    • Power Analyzer
    • Timing/Noise Analyzer
    • DMM
    • Oscilloscope
    • Other with GPIB or RS-232 device

Model Options

ModelDescription
89008900 Electrical Equipment ATS
