Chroma 61507, 61508, 61509, 61511, and 61512 can comply with the power test requirements for aircraft as stipulated by avionic standards. The power sources can help user to simulate aircraft power disturbance test by linking Chroma test softwares.
MIL-STD-704F Standards
RTCA DO-160G Standards
ABD0100.1.8.1 Standards

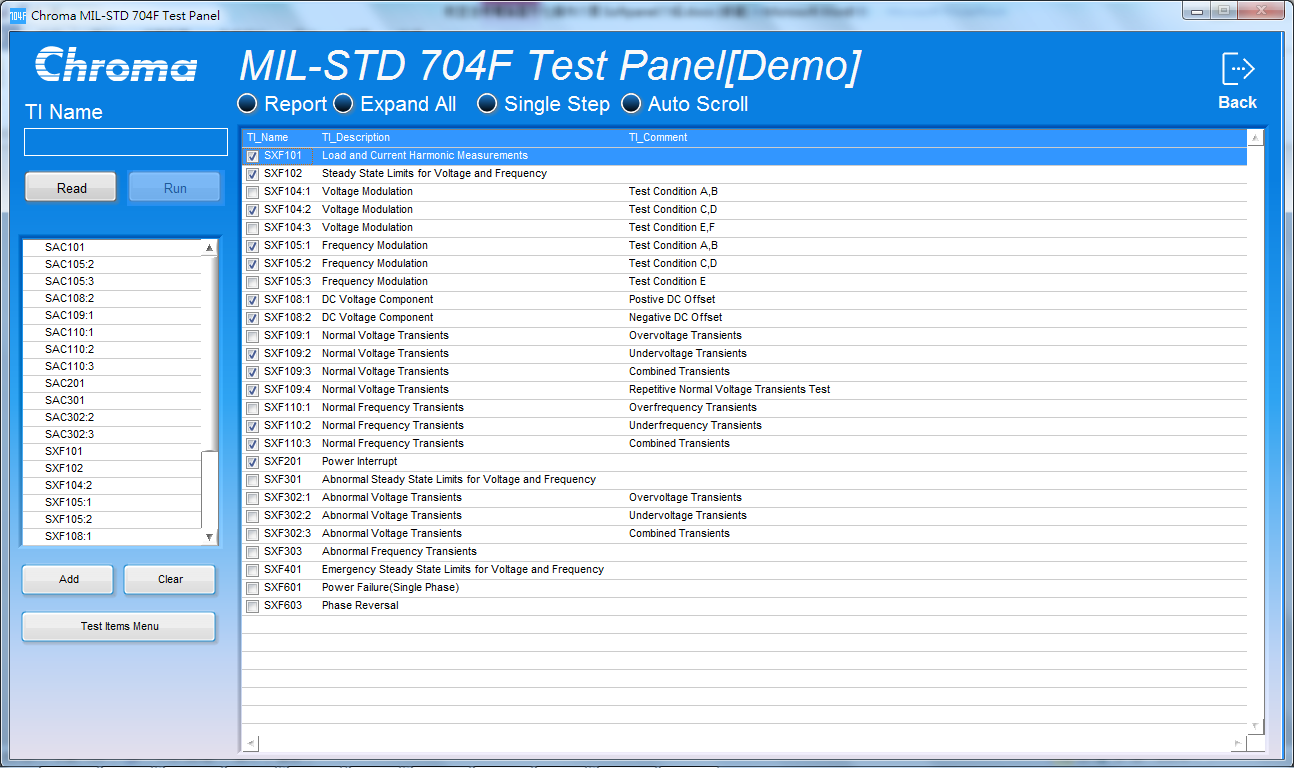

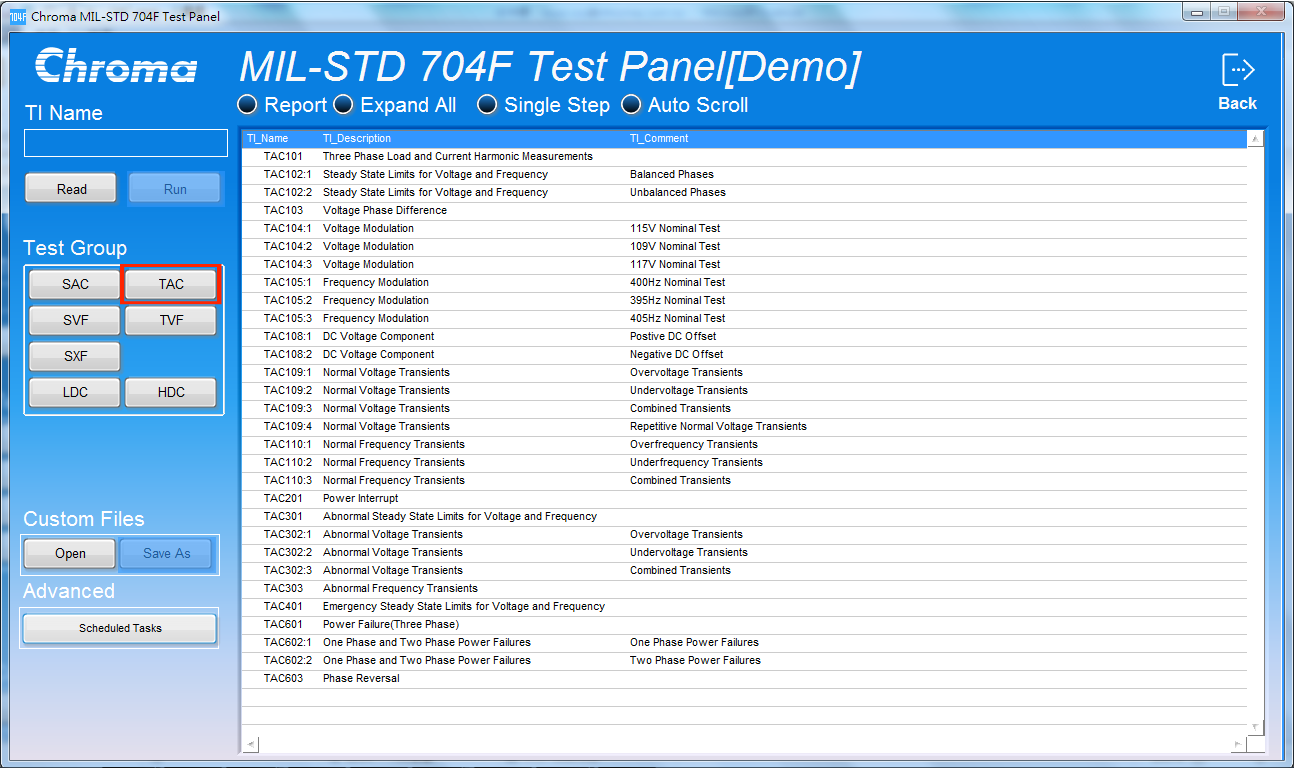

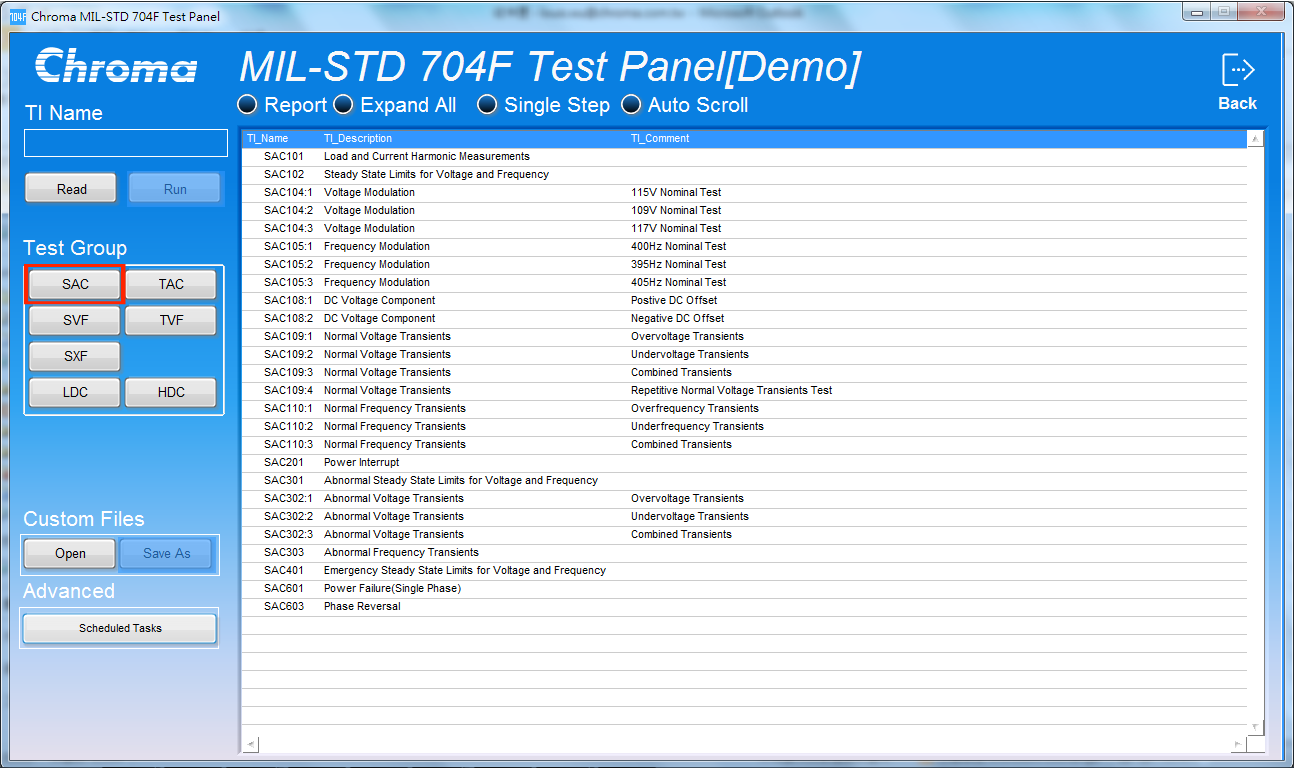

The SoftPanel for MIL-STD-704F provides seven test groups in total, including three single-phase AC power test groups (SAC, SVF, and SXF), two three-phase AC power test groups (TAC and TVF), and two DC power test groups (LDC and HDC). This software can be connected via GPIB, RS-232C, USB, and Ethernet, and it supports single/three-phase switching.
Key Features
Single Phase, 400Hz, 115V
Single Phase, Variable Frequency, 115V
Single Phase, 60Hz, 115V
Three Phase, 400Hz, 115V
Three Phase, Variable Frequency, 115V
Low Voltage DC, 28V
High Voltage DC, 270V

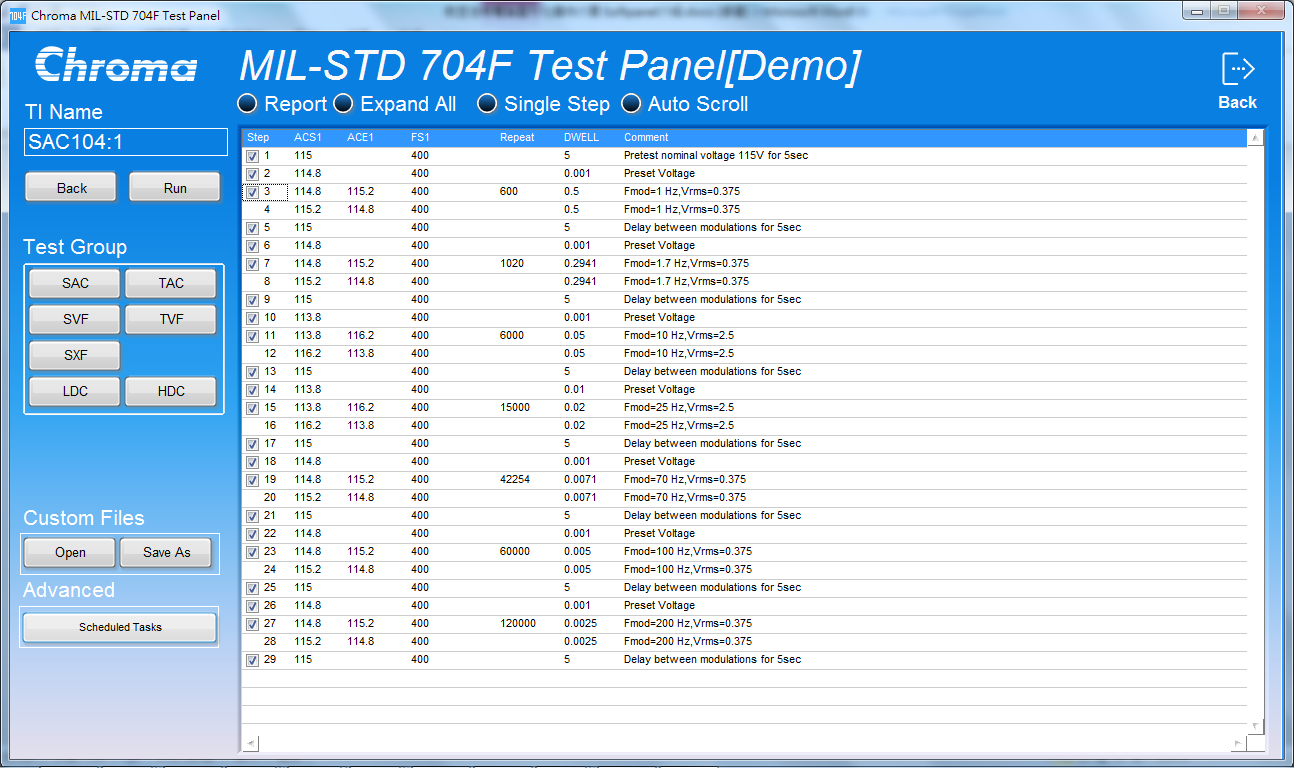

After clicking the test item, users can view each test step included. The interface allows users to directly cancel certain test steps or modify parameters such as the voltage, frequency, or duration.
The Advanced function enables editing of the test sequence. Users can add the test items they need and let the software test in sequence.
The SoftPanel for RTCA-DO 160G provides seventeen test groups in total. These include six single-phase AC power test groups that can be identified by frequency, which are three groups respectively CF (400Hz), NF (360Hz to 650Hz) and WF (360Hz to 800Hz), plus two conditions of 115V and 230V. The six three-phase AC power test groups follow the same distribution as the single-phase test groups. The remaining five DC power test groups are A28, B28, Z28, B14, and D270. This software can be connected via GPIB, RS-232C, USB, and Ethernet, and it supports single/three-phase switching.
Key Features
S:ACF 115 Single Phase, 400Hz Constant Frequency, 115V
Single Phase, Variable Frequency, 115V
S:AWF 115 Single Phase, 360Hz to 800Hz, 115V
S:ACF 230 Single Phase, 400Hz Constant Frequency, 230V
S:ANF 230 Single Phase, 360Hz to 650Hz, 230V
S:AWF 230 Single Phase, 360Hz to 800Hz, 230V
T:ACF 115 Three Phase, 400Hz Constant Frequency, 115V
T:ANF 115 Three Phase, 360Hz to 650Hz, 115V
T:AWF 115 Three Phase, 360Hz to 800Hz, 115V
T:ACF 230 Three Phase, 400Hz Constant Frequency, 230V
T:ANF 230 Three Phase, 360Hz to 650Hz, 230V
T:AWF 230 Three Phase, 360Hz to 800Hz, 230V
A28 Low Voltage DC 28V
B28 Low Voltage DC 28V
B14 Low Voltage DC 14V
Z28 Low Voltage DC 28V
D270 High Voltage DC 270V
After clicking the test item, users can view each test step included. The interface allows users to directly cancel certain test steps or modify parameters such as the voltage, frequency, or duration.
The Advanced function enables editing of the test sequence. Users can add the test items they need and let the software test in sequence.

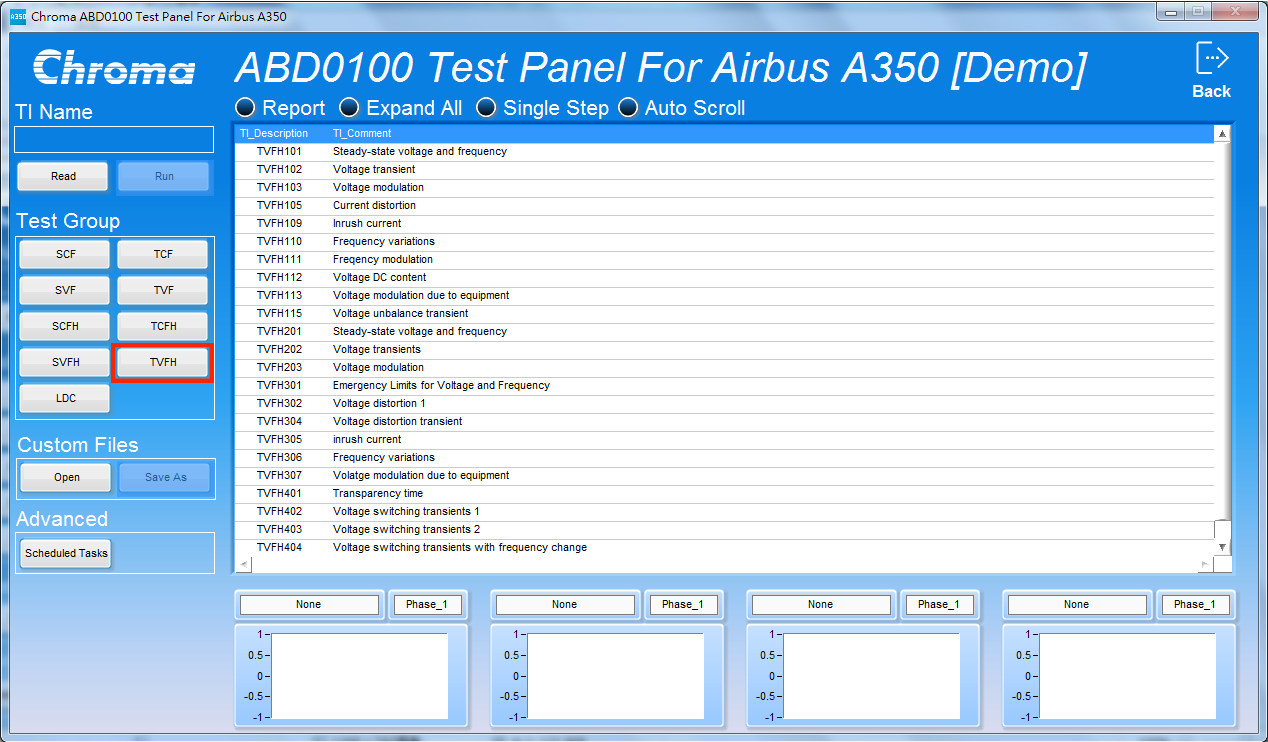

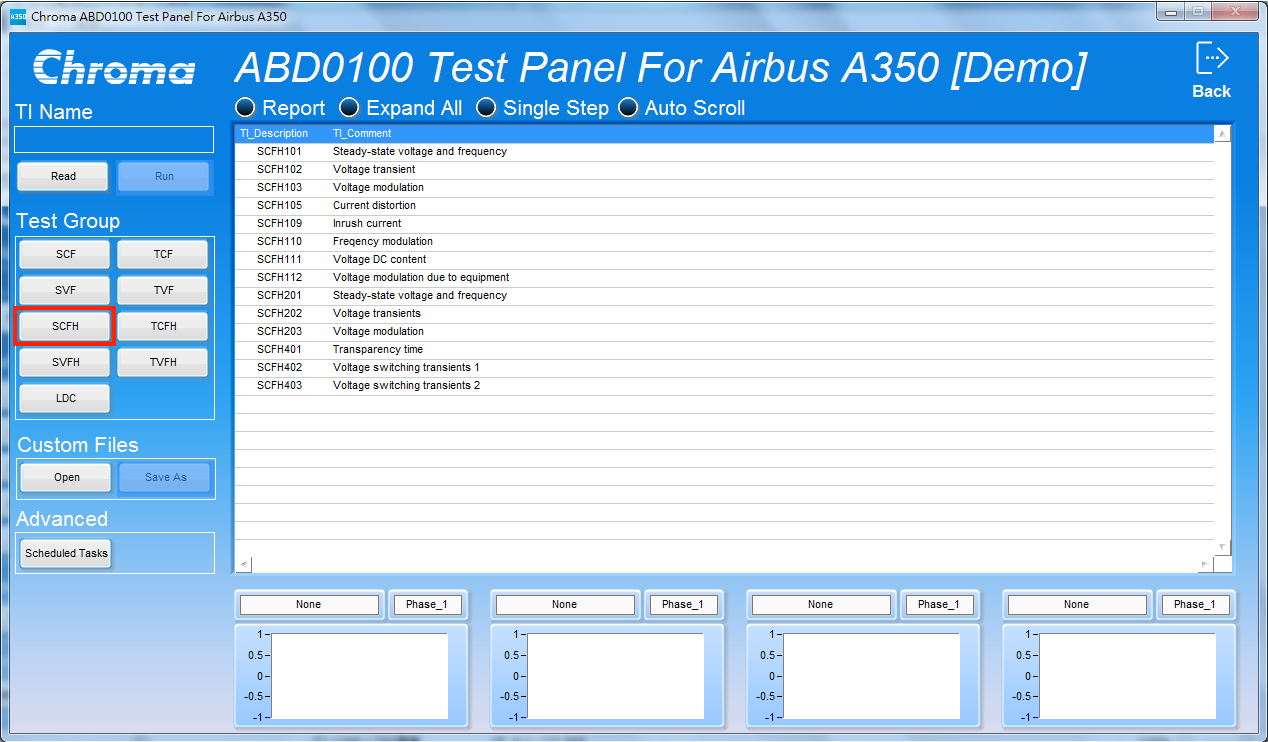

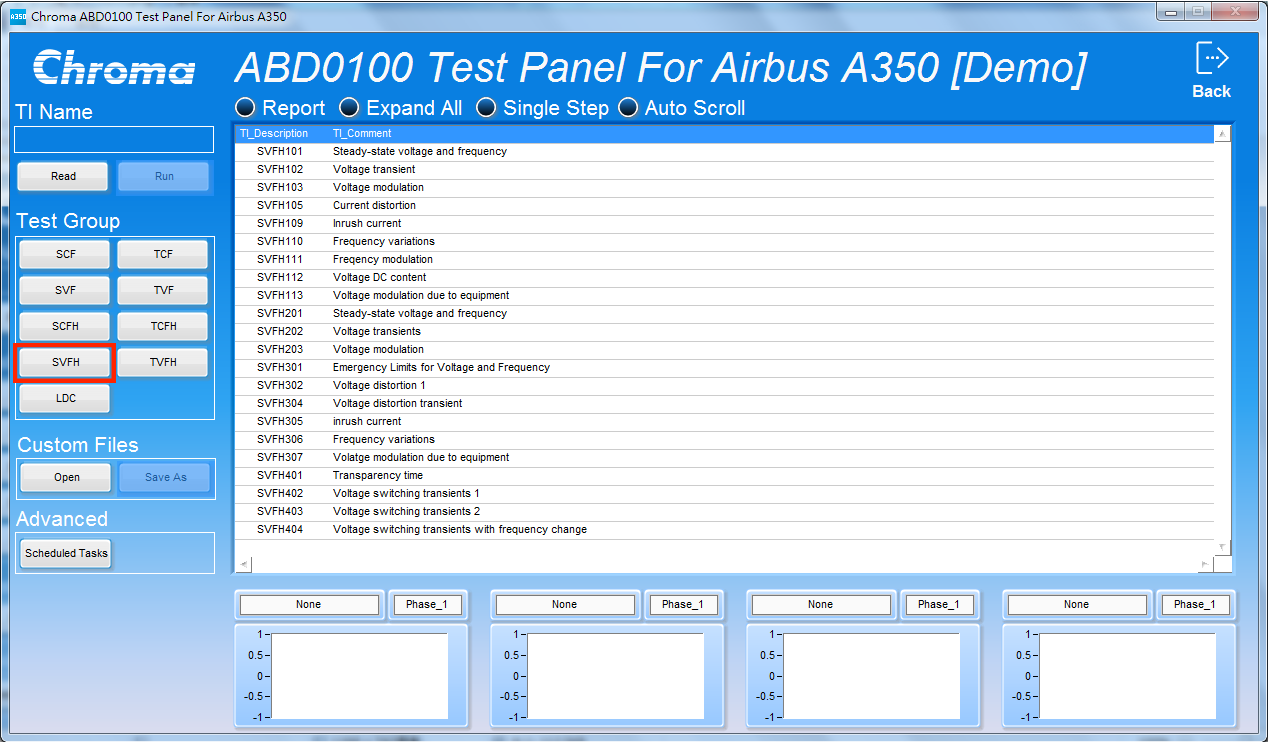

The SoftPanel for ABD0100.1.8.1 provides nine test groups in total, including four single-phase AC power test groups (SCF, SVF, SCFH, and SVFH), four three-phase AC power test groups (TCF, TVF, TCFH, and TVFH), and one DC power test group (LDC). This software can be connected via GPIB, RS-232C, USB, and Ethernet, and it supports single/three-phase switching.
Key Features
Single Phase, 400Hz Constant Frequency, 115V
Single Phase, Variable Frequency, 115V
Single Phase, 400Hz Constant Frequency, 230V
Single Phase, variable Frequency, 230V
Three Phase, 400Hz Constant Frequency, 115V
Three Phase, Variable Frequency, 115V
Three Phase, 400Hz Constant Frequency, 230V
Three Phase, Variable Frequency, 230V
Low Voltage DC, 28V
After clicking the test item, users can view each test step included. The interface allows users to directly cancel certain test steps or modify parameters such as the voltage, frequency, or duration.
The Advanced function enables editing of the test sequence. Users can add the test items they need and let the software test in sequence.
A615011
SoftPanel for Aviation – Avionic Standards for MIL-STD-704F
A615010
SoftPanel for Commercial Aviation – Avionic Standards for RTCA DO-160G
A615012
SoftPanel for Airbus A350 Avionic Standards for ABD0100.1.8.1
